Product introduction
Orthodontic Model Resin is a specialized resin material designed for digital dentistry, suitable for 3D printing high-temperature-resistant dental models

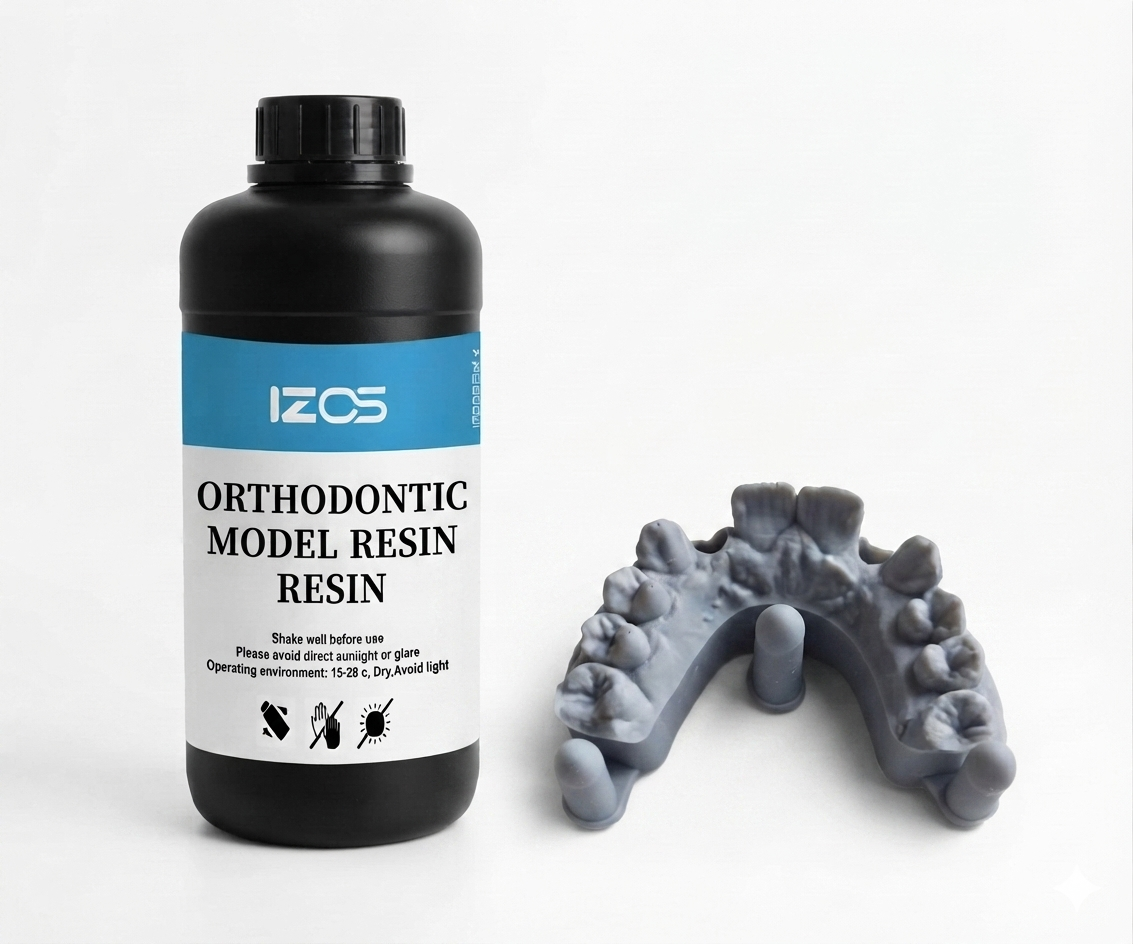

Orthodonic Model Resin
Product Features
High Temperature & Pressure Resistance: Engineered to withstand the heat and mechanical stress of vacuum forming and hot-press thermoforming machines without thermal deformation
. High Molding Accuracy & Crisp Detail: Formulated for precise orthodontic models with razor-sharp tooth contours, tight margin fits, and exact tooth alignment
. High Hardness (85D) & Surface Toughness: Delivers robust structural strength with zero brittleness, preventing edge chipping or cracking during thermoforming and handling
. Low Shrinkage & Dimensional Stability: Low volumetric shrinkage (< 3.1%–3.3%) ensures consistent dimensional accuracy across long print runs and long-term storage
. Fast Curing & Easy Post-Cleaning: Optimized for rapid 1.5–3s layer exposure on standard 365–405nm monochrome LCD/MSLA printers and easily cleaned with 95% IPA
Technical Specifications
| Parameter Item | Specification |
| Product Model | Orthodontic Model Resin |
| Available Colors | White, Grey, Dark Purple-Grey, Skin, Black |
| Shore Hardness | 85D |
| Viscosity (25°C) | 300 – 400 cps |
| Liquid Density | 1.11 g/cm³ |
| Flexural Strength | 28 MPa |
| Tensile Strength | 39 MPa |
| Curing Time | 1.5 – 3 s (Monochrome LCD) |
| Volumetric Shrinkage | < 3.1% – 3.3% |
| Shelf Life | 1 Year (Stored below 25°C in dark/dry place) |
Product Introduciton
Orthodontic Aligner Models: Thermoforming master models used for vacuum-forming clear aligners and retainers
. Dental Working Models: Full-arch and quadrant diagnostic dental models, orthodontic study models, and removable die setups
. Dental Lab Demonstration & Display: Smooth, high-precision physical models for clinical case presentations
.
